This kit will greatly simplify the job of incorporating the
PTSS2003 RF Transceiver Module into your designs. With our easy setup and configuration,
in a matter of minutes you can put the 250 mW transmit power of the FCC-certified PTSS2003 Transceiver
to work for you! And now, production efficiencies and increased volume have enabled us to offer
this kit at a lowered price!
|
Kit Contents
- 2 PTSS2003 Transceiver Modules
- 2 PTSS2003TB1 Demo Boards
- 2 Rubber Flex Antennas
- 2 RS-232 Serial Cables
- 6 AAA Alkaline Cells
- CD Rom containing:
- Configuration Software
- User's Manual
|
|
The self-contained demo boards permit you to plug in the PTSS2003 RF modules and see
within minutes how they operate. Each board includes a built-in battery holder with
3 AAA alkaline cells and a switch, which permits free-standing range testing without
the need to be tied to a power source. It also includes LED lights to provide visual
evidence that signals have been received, and provides built-in serial logic level
conversion to and from standard RS-232 interface cables. The modules are pre-configured
in power-up test mode, one as a receiver and the other as a transmitter. These configurations
and others can be easily changed using the provided software.
When ordering, ask for Part Number PTSS2003DK. Acceptable methods of payment include credit
card (US customers only), advance check, money order, or Net-30 terms (with prior approval).
To purchase online, go to our RF Sales page.
Let us be your RF experts -- for more information on our consulting services, visit the
Pegasus Tech Home Page or call (865) 717-9339 .
|
| Solid dark line |
The PTSS2003 Developer's Kit ...
- Supports the FCC-certified frequency hopping spread spectrum 915 MHz band
PTSS2003 RF transceiver module
- Enclosed units include switched battery-powered operation and permit direct
RS-232 interface
- Includes all components necessary to get the units up and running right away
- Easy set up and configuration
- Detailed documentation and full technical support speeds up the integration process
|
| Solid dark line |
System Requirements:
2 IBM-compatible PCs running Windows 98 or later, each with an available serial
port and a CDRom drive.
|
Software:
The CD contains configuration and test modes which allow range test measurements,
power management control, data encryption options, hop table selection, and more.
|
|
Kit Component |
Application |
| 2 PTSS2003 Transceiver Modules |
- Range testing for your application
- Mechanical fit testing
- Data transmission
|
| 2 PTSS2003TB1 Demo Boards |
- Serial logic conversion to/from RS-232
- Connection with PTS2003 module
- LED indicator lights for reception testing
- Switched battery power for unplugged operation and testing
|
2 Rubber Flex Antennas
|
Small, convenient and cost-efficient antennas
plug directly into connector on demo board. |
| 2 RS-232 Cables |
Connect the Demo Board to the PCs serial port |
| 6 AAA Alkaline Cells |
Provide tether-free power for the Demo Board for easy range testing |
| Configuration Software (on the CDRom) |
- Setup configuration for range testing, pwer testing, or normal operation
- Selection of hop table
- Console version and Windows version
- Reloading of firmware for updates and custom applications
|
| Detailed documentation (on the CDRom) |
User's Manual with complete details of the communications protocol
between the PTSS2003 and your system. |
| Free Software Updates |
Access to Pegasus Technologies' Secure Developers' site, with free firmware
& documentation updates is included. |
| Engineering Support |
Assistance in your integration effort is included as part of the
development kit. Additional engineering support and transceiver hardware/firmware
customization can be quoted by Pegasus Technologies. |

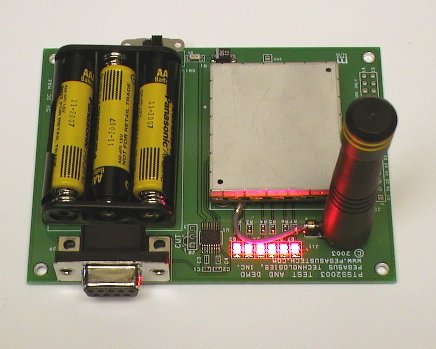

The demo board, with the PTSS2003 plugged in and receiving a signal
For a downloadable/printer friendly copy of this spec sheet, select one of the links below:
For complete details and pricing, please email Pegasus Technologies,
or call Jim Pearce at (865) 717-9339.
|
|
